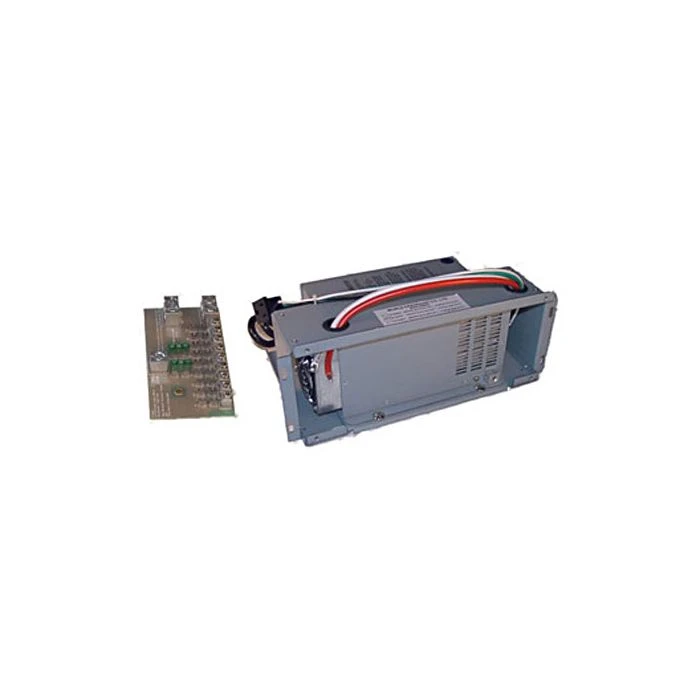

WFCO Universal 55 Amp Converter Replacement Kit

he WF-8900REP Universal Converter Replacement Kit makes it easy to replace the removable lower converter section on certain brands of power centers. The kit consists of a WF-9800 Series Converter/Charger mounted into a metal
bracket to make installation easy. A new DC Fuse Board is also included.

The WF- 8900REP provides all of the WFCO’s performance standards: quiet operation, filtered power, overload protection, short circuit protection and FCC Class B approval. Quiet operation is assured as the cooling fan only runs when needed. Automatic three stage battery charging maintains your battery’s life with three nominal voltage output modes:13.2 Vdc range “float”mode, 13.6 Vdc range“absorption” mode and 14.4 Vdc range “bulk” mode. The converter is protected against over temperature and reverse battery connection.The WF- 8900REP is FCC Class B compliant.This means that the converter is deigned not to cause interference with televisions, radio or other signals.

Item #	17294
Brand	WFCO
Series	8900
Model	WF-8955REP
Style	Replacement
Input	105-130 VAC, 60 Hz
Output Amperage	55 Amp (Output Power: 950 W)
Features	Converter Type: Three-Stage Converter Charger Voltage Output: 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage) Over Current : Yes Over Temperature: Yes Over Voltage : Yes Reverse Polarity: Yes Short Circuit: Yes Cooling System: Yes
Included	DC fuse board
Dimensions	12˝ wide; 4.75˝ high; 7.65˝ deep Kit size (with converter mounted in bracket)
Warranty	2 Year
Net Weight	10.25
Special Order Item	No
UPC	816227010278
