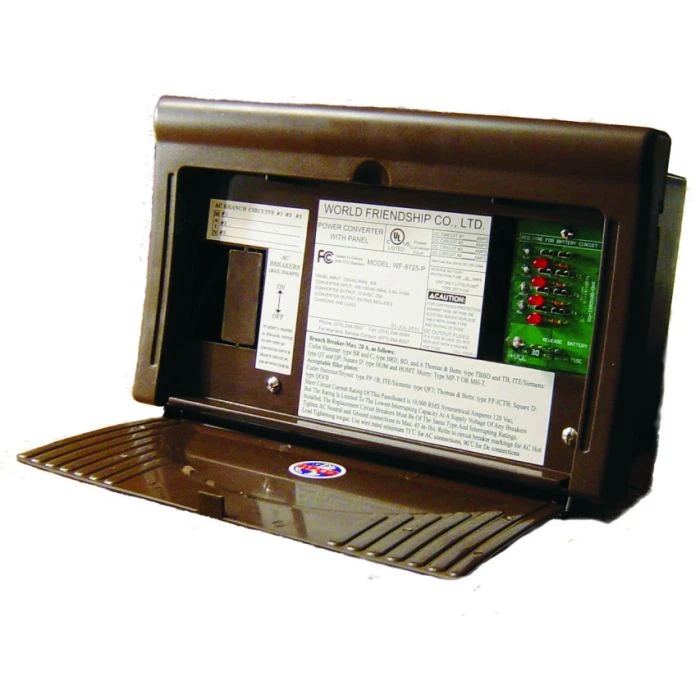

WFCO Brown 25 Amp Distribution Panel Converter

WFCO’s three-stage battery charging results in longer battery life and is totally automatic. Nominal voltage output modes are a 13.2 Vdc range “float” mode, 13.6V DC range “absorption” charge mode, and a 14.4V DC range “bulk” charge mode. Short-circuit and reverse polarity protection provide you with further reliability and peace of mind. The cooling fan for the 8725 operates only when needed and ensures quiet operation.

Every model is designed to comply with FCC Class B, which means that the converters do not cause interference with televisions, radios or other signals. The 8700 Series also brings you the convenience of built-in AC and DC distribution. 30-amp main AC breaker and a total of up to three 20-amp branch AC circuits can be installed. Four DC circuits include LED lights that illuminate to indicate open circuits.

*Power center does NOT include individual fuses or breakers.

Item #	69092
Brand	WFCO
Series	8700
Model	WF-8725-P
Style	Distribution Panel
Input	105-130 VAC, 60 Hz
Output Amperage	25 Amp (Output Power: 340 W)
Color	Brown
Features	Converter Type: Three-Stage Converter Charger Voltage Output: 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage): 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage): 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage): 13.2V DC (trickle charge voltage) AC Circuits (twin breakers): 4 (Main and 3 branch circuits) DC Circuits (Quantity): 4 (one battery circuit) Case Material: Plastic Over Current : Yes Over Temperature: Yes Over Voltage : Yes Reverse Polarity: Yes Cooling System: Yes Certifications : FCC
Included	*Power center does NOT include individual fuses or breakers.
Dimensions	11 7/8″ wide; 7 1/4″ high; 5″ deep
Warranty	2 Year
Net Weight	4.75
Special Order Item	No
UPC	816227010032
