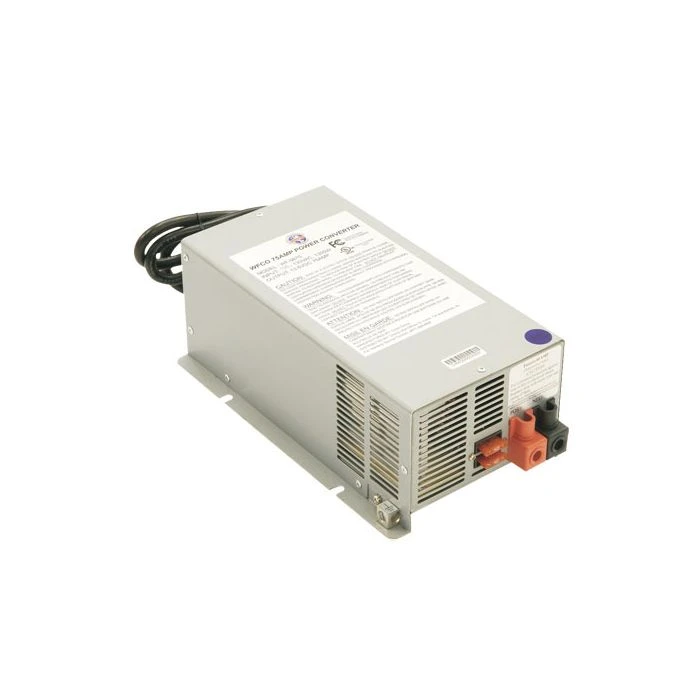

WFCO 8800 Series 55 Amp Converter

The WF-8855E converter/charger is a versatile, advanced power source solution for 220 VAC powered systems. The WF-8855E model provides 55 Amps of clean, reliable DC power, which is ideal for powering electronics and appliances. It provides clean power, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed.

Item #	97030
Brand	WFCO
Model	WF-8855E
Style	Deck Mount
Features	Automatic three-stage battery charging maintains your battery’s life with three nominal voltage output modes: 13.2 VDC range “float” mode, 13.6 VDC range “absorption” mode, and a 14.4 VDC range “bulk” charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions. Output Power 750 W Input Voltage/Hz 190-240 VAC, 50 Hz Output Current 55 A Converter Type Three-Stage Converter Charger Voltage Output 13.2 – 14.4V DC Range Absorption Mode (Nominal Voltage) 13.6V DC (nominal voltage) Bulk Mode (Quick Charging Voltage) 14.4V DC (quick charging voltage) Float Mode (Trickle Charge Voltage) 13.2V DC (trickle charge voltage) Over Current Yes Over Temperature Yes Over Voltage Yes Reverse Polarity Yes Short Circuit Yes Cooling System Yes
Dimensions	Dimensions 6.3˝ wide; 4.0˝ high; 10.2˝ deep
Special Order Item	No
UPC	816227010223
