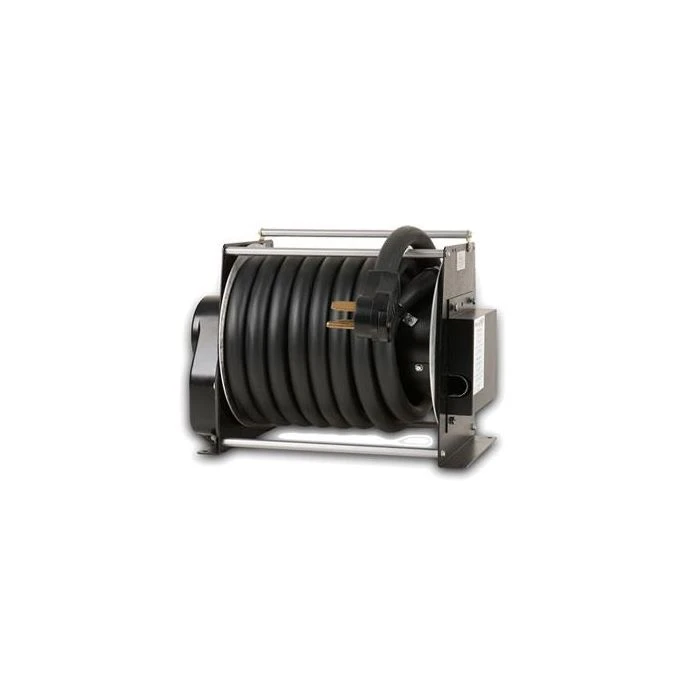

TRC 50A Low Profile Electric Storage Reel with 33′ Cord

No other cord reel device retrieves more quickly or stores more compactly. Pull the cord and it free-spools off the reel…you only pull off what you need. To retrieve, push the button (motorized) or turn the hand crank (manual). Optional floor portal and roller kits are recommended for cords exiting through storage compartment floors. If your RV has a twist lock plug in the storage compartment, optional female twist lock connector on the end of the pigtail simplifies installation.

Dimensions: 8.71″ W X 11.5″ D X 16.5″ H
Drive System: 12 VDC or 24 VDC chain drive gear motor. No clutches – system always engaged
Amp Draw: 4-6 Amps in normal operation. Up to 12 Amps in locked rotor condition – motor overload trips between 10-12 Amps depending on duration.
Weight: Cord reel with 33 feet of 6/3 8/1 cord and 4 foot pigtail is 48 pounds

Item #	72021
Brand	TRC
Model	RL54331LMK
Replaces	CL50D02L-SR
Amperage	50 Amp
Length	30'
Features	Low Profile Design allows for installation in low compartments or frame of 5th wheel. Typically used in Fifth Wheels or Coaches with shorter compartments. Easily installs with common hand tools. 33 feet of 6/3 8/1 Flexible Cord. Aftermarket reel comes with 4 foot pigtail. Certification: ETL – File # 3082696. NEW! High torque motor provides 3x pulling power of previous design. NEW! Quieter Operation. Reel free spools for cord removal and is powered in by drive motor. No remote controls necessary. Eliminates tangled and kinked cords. Non-stiffening, super flexible power cords. Reels are hard wired into the coach. Spool sides and core are anodized aluminum. Side frames powder coated galvanized steel. Includes 4 foot pigtail that attaches the reel to the transfer switch or junction box.
Included	33' 50A Cord
Warranty	2 Year
Special Order Item	No
UPC	10024098500218
