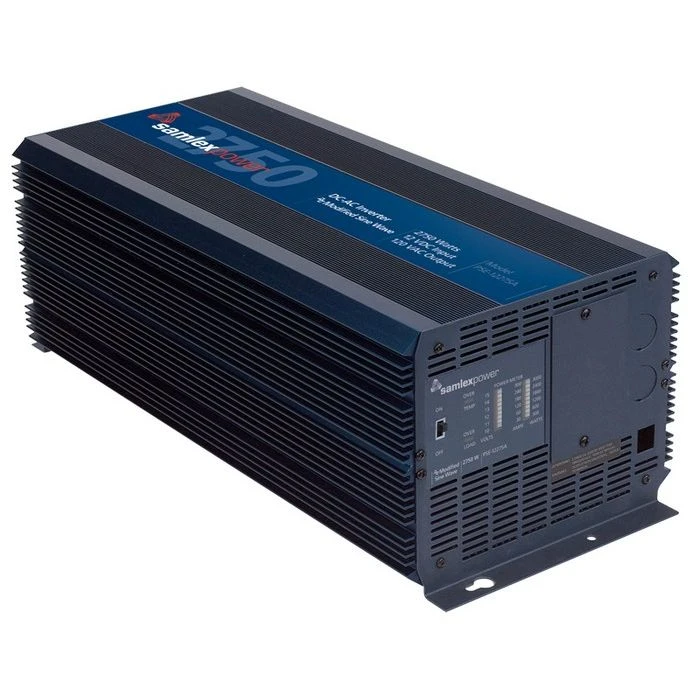

Samlex PSE Series 2750 Watt Modified Sine Wave Inverter

The unit comes with a set of battery cable lugs. Output AC power is available by means of hardwire connection (NEMA 5-15R receptacles with 15 Amp breaker optional accessory).

Item #	88558
Peak Efficiency	85% to 90%
Special Order Item	No
Net Weight	16.20
Warranty	2 Year
Dimensions	(W x D x H) 8.07 x 19.49 x 6.30 inches
Features	Switching mode design. High efficiency. Modified sine wave output voltage. 12 VDC input and 120 VAC output. Overload protection. High output current surge. Low battery alarm / shut down. Low idle power draw of less than 0.05 Amps. Compact and light weight. One output receptacle. Configuration also enables hardwiring to multi-outlets.
Surge	4500 Watts
Remote Display	Optional
Output Waveform	Modified Sine Wave
Brand	Samlex
Output voltage	120VAC +5% / – 10%
Output frequency	60Hz ± 5%
Transfer Switch	No
Charger	No
Continuous Rating	2750 Watts
Installation Type	Permanent
Model	PSE-12275A
Series	PSE Series
UPC	622988071133
