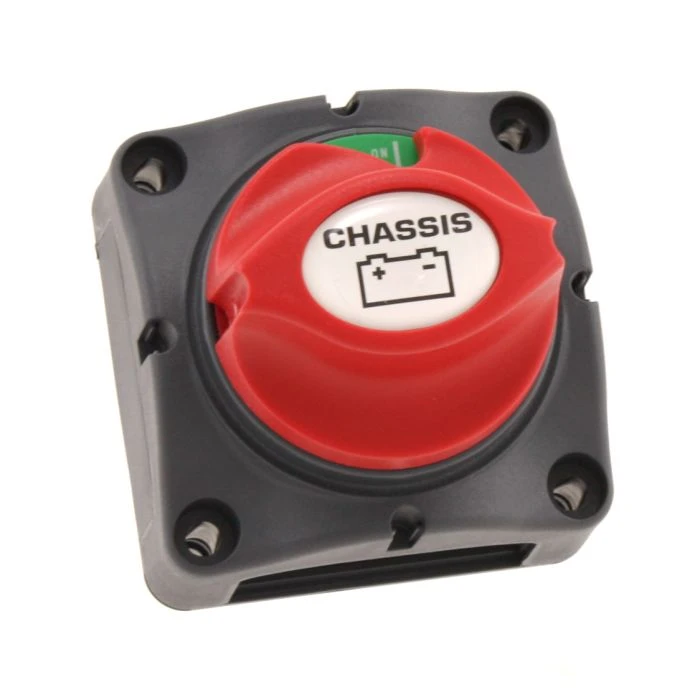

Park Power Contour Heavy-Duty Master Switch 1250A Crank

Unique to the Contour and House Battery Master Switches is the patented contour lock system, allowing the switches to be used as stand alone units, or locked together with other switches. The 701RV also features a control knob which cannot be removed while in the ON or OFF position, but it can be removed by switching to an anti-clockwise 45° position. The 701RV also features removable side plates on the 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.

Item #	17270
Brand	Park Power
Model	701CHRV
Color	Gray
Features	Continuous Rating: 275 Amps DC Intermittent Rating: 455 Amps DC Cranking Rating: 1250 Amps DC Voltage Rating: 48 Volts DC Operation: On/Off Recessed or Surface Mount Ignition Protected Tin plated copper studs and nuts
Dimensions	2-3/4" x 2-3/4" x 3" Mounting Holes Spaced: 2-3/16" x 2-3/16" Termination Stud Size: 3/8"
Warranty	5 Year
Made in	New Zealand
Net Weight	.50
Gross Weight	.55
Special Order Item	No
UPC	093344311666
LTL Freight	No
