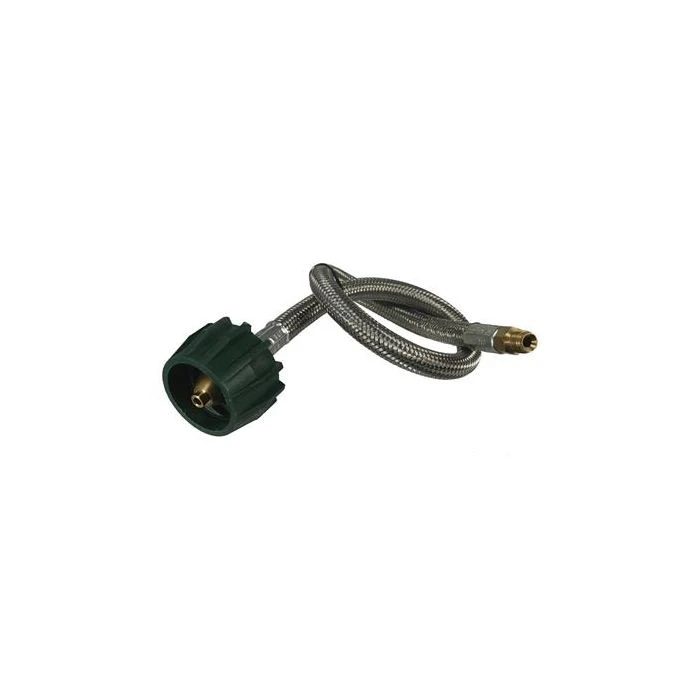

MB Sturgis 12″ RV Type1 X Inverted Flare Pigtail with Stainless Steel Overbraid

The MB Sturgis Type 1 provides a higher rate of flow resulting in a decreased potential for the system to go into bypass mode and therefore shutting down the gas supply to the system.

The MB Sturgis RV Type 1 (Dark Green) includes an internal back check to ensure the system does not allow a back flow gas leak. Provides a higher flow rate to avoid going into by-pass mode, a back check to completly stop any potential back flow leakage and has a heat sensitive thermal shut-off device to shut off the gas in extreme heat situations.

Item #	84350
Brand	MB Sturgis
Model	100833-12
Replaces	100699-12
Hose Length	12"
LP Hose Fitting Type	1/4" Male Inverted Flare, Type 1 ACME
Features	MAX FLOW CAPACITY – 200,000 SCFH TEMPERATURE RANGE – -40ºF to 140º (-40ºC to 60ºC) CERTIFICATION – UL569 / ANSI Z21-81 Used for LP Gas Only Compatibility: LP Gas Trunk Hose End Type1: Acme Nut End Size2: 1/4 Inch End Type2: Male Inverted Flare With Thermal Protection: Yes UL/CGA Approved: Yes
Included	(1) Propane Pigtail Hose
Dimensions	1/4" ID Stainless Steel Overbraided Thermo Plastic Hose Dark Green RV Type 1 Tank Connection 1/4" Male Inverted Flare. 12" Overall Length Diameter: 3/8' I.D.
Made in	USA
Special Order Item	No
UPC	764560528298
LTL Freight	No
