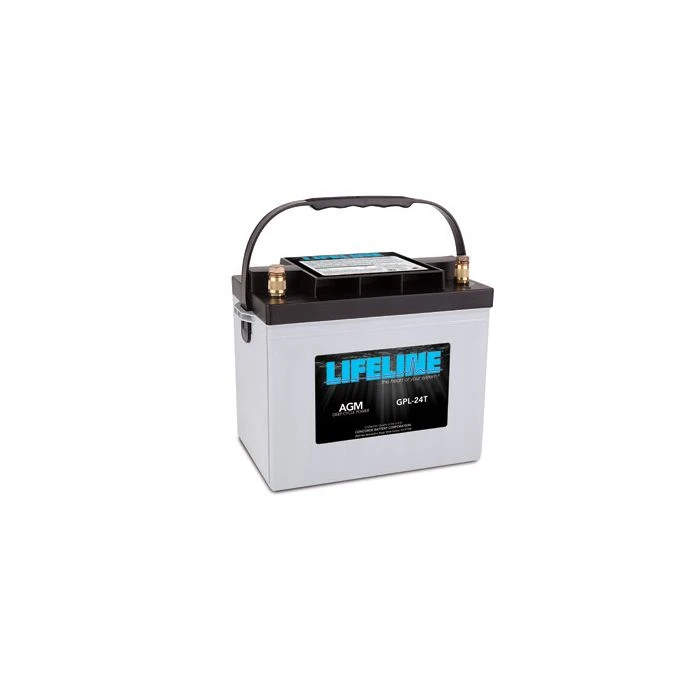

LifeLine 12V RV Deep Cycle 80ah AGM Battery

Due to the Lifeline Battery’s quality construction, it has an industry leading 2% per month self discharge rate at 77°F (25°C). These batteries off gas only 2% by volume under normal operating conditions, again, industry leading. No sulfuric acid leaks, no acid clean up, and more power in the same space when compared to conventional batteries. The GPL-24T is designed for charging amperages up to 200 amps or 250% of the rated Amp Hour Capacity due to low battery internal resistance.

Terminal Types:
– Marine Terminal (Copper Alloy), Pos Terminal=M10 & Neg Terminal =M8.

*Metric/U.S sizes:
-Nearest U.S. Dimentsions: M6 = 1/4″, M8 = 5/16″, M10 = 3/8″ (U.S. reference sizes only, not interchangeable).

*Torque Values:
– (M6 use 35 in-lbs / 4.0 Nm) (M8 & M10 use 70 in-lbs / 7.9 Nm).

Item #	88032
Brand	LifeLine
Model	GPL-24T
Voltage	12V
Capacity 20 hr Rate	80 AH
Minutes of Discharge	149 at 25 amps.259 at 15 amps.524 at 8 amps.
Cranking Amps	800 at 68° F.680 at 32° F.550 at 0° F.
Features	Bulk Charge Voltages: 14.20 – 14.60. Absorption/Acceptance Charge: 14.20 – 14.60. Float Charge Voltages: 13.10 – 13.40. Recommended Charge Amperage: Up to 100% of the rated amp hour capacity. Self Discharge Rate: 2% per month at 77°F (25°C). Operating Temperature: -50° to 150° F (-45 to 65.5 C). Cycle life: 1,100 cycles to 50% DOD, 500 cycles to 100% DOD. Terminal Types: Marine Terminal (Copper Alloy), Pos Terminal=M10 & Neg Terminal =M8.
Included	Terminal Hardware: When required, all batteries are supplied with silicon bronze bolts, nuts & washers necessary for installation.
Dimensions	Length=11.13., Width= 6.60, Height= 9.25
Warranty	1-Year free replacement / 4-Year pro-rate (RV and Marine use Only). All other applications are a 1-Year pro-rate warranty only.
Made in	USA
Net Weight	56
Special Order Item	No
LTL Freight	No
