Inteli-Power 4500 Series 60 Amp All-In-One AC/DC Distribution Panel And Inteli-Power Converter/Charger

Original price was: $365.00.Current price is: $98.99.

Safe Transactions, Always

Quality Products, Quality Service

Green products, guaranteed.

Safe Shopping Guaranteed

/

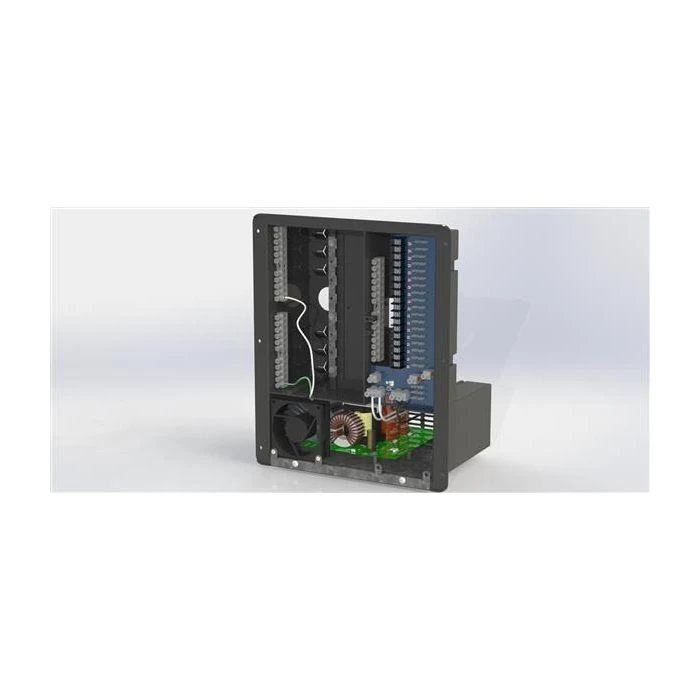

Inteli-Power 4500 Series 60 Amp All-In-One AC/DC Distribution Panel and Inteli-Power Converter/Charger

Top two fuse holders recommended for low current devices such as smoke detectors and carbon monoxide detectors. 18 Branch fuse holders with maximum rating of 20 AMP. Optional L.E.D. indicators identify which fuse is blown. Converter/Charger section is accessible from the front. Provisions for up to 12 branch breakers (breakers not included). AC Panel features 12 built-in push and lock strain relief wiring connectors for quick installation. Saves over 50% on installation cost. Vertical or horizontal mounting choices. Inteli-Power 4500 Series models can recharge the battery to 90% in 2-3 hours using our patented Charge Wizard technology. The built-in Charge Wizard automatically selects one of four operating modes: BOOST, NORMAL, STORAGE, DESULFATION. (1) BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge. In the BOOST mode the Charge Wizard status indicator stays on. (2) NORMAL Mode 13.6 Volts – Safely completes the charge. In the NORMAL mode the Charge Wizard status indicator flashes once every second. (3) STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss. In the STORAGE mode the Charge Wizard status indicator flashes once every 8 seconds. (4) DESULFATION Mode 14.4 Volts every 21 hours for a period of 15 minutes to prevent battery stratification. In the DESULFATION mode the Charge Wizard status indicator stays on.

Item #	16579
Brand	Progressive Dynamics
Series	4500
Model	PD4560K12LS8V
Replaces	PD4560K12LV
Style	Distribution Panel
Input	105 – 130 VAC, 1000 Watts
Output Amperage	60 Amps 13.6 VDC
Features	Power Converter; Inteli-Power (R) 4500 Series; 240 Volt Converter/ Charger; 1000 Continuous Watts Maximum Input; 60 Amp Maximum DC Output; 80 Percent Efficiency; With Reverse Battery/ Thermal Protection; 7.8 Inch Length x 11.85 Inch Width x 14-1/8 Inch Height; With AC Distribution Panel/ DC Distribution Panel With Optional 12 Branch Fuse Holders, Two Wired 30 Amps Fuses/ Optional 18 Branch Fuse Holders, Four Wired 30 Amps Fuses/ With Built-In Charge Wizard Microprocessor Controlled Four Stage Charger/ Optional LED Indicators And DC Disconnect Tie-In
Included	Reverse Battery Protection Electronic Current Limiting High And Low AC Input Protection Intelligent, Variable Speed Cooling Fan Automatic Thermal Protection Press Open Door For Easy Access To Circuit Breakers Front Access To Large Wiring Compartment Limited 2 Year Warranty
Dimensions	Converts: 105-130 Volt AC To 13.6 Volt DC Continuous Output Power (W): 1000 Watt Ampere Rating: 60 Amp Efficiency: 80 Percent Length: 7.8 Inch Width: 11.85 Inch Height: 14-1/8 Inch With Built-In Charger: Yes With Fuse: Yes
Cutout	13.25" (H) x 10.125 (W)
Warranty	2 Year
Special Order Item	No
UPC	675566456020
