Dometic Single Zone Cool/Furnace Control Board and LCD Thermostat Kit

Dometic Item# 9600024570, DOMETIC CT SINGLE ZONE THERMOSTAT

CT SINGLE ZONE CONTROL KIT COOL/FURNACE – WHITE
CTRL KIT, CT STD-C/F-WHT

The Single Zone LCD Thermostat operates automatically or manually and is the perfect choice for standard or ducted rooftop units. Comfort and control come together in one superb package. The Dometic Single Zone LCD Thermostat lets you control all interior heating and cooling from one convenient, easy-to-use location.

Easy installation and set-up:
– Three wire connector, any leftover/extra wires from a previous set-up will be spares.
Factory set default temperatures:
– Heating 68°F/20°C.
– Cooling 72°F/22°C.
– Furnace mode has a preset 2°F differential.
Other specs:
– Open back for pull through wiring.
– Back plate with two screws.
– Snap in display cover.
– 12V DC supply.

System diagnostics displayed on demand.
Single Zone LCD Thermostat easily functions up to 75-feet away from the air conditioner.
Built-in temperature sensor.

Item #	82073

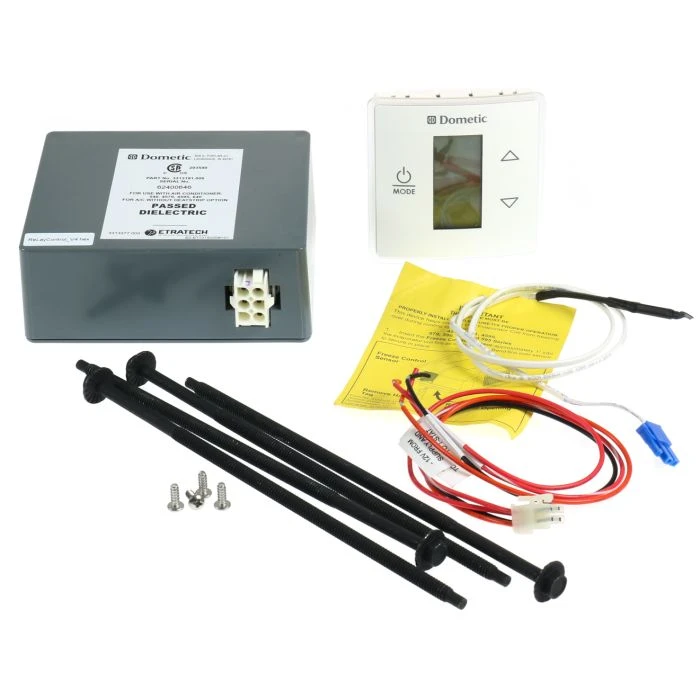

Included	(1) Control Kit (1) Thermostat (1) Hardware Pack (1) Instructions
UPC	713814215699
Return Policy	30 Days (After Delivery)
Special Order Item	No
Gross Weight	1.60
Net Weight	1.35
Warranty	Limited 2 Year Manufacturer Warranty
Dimensions	Thermostat: 3" x 3" (3316410.700) Control Box: 4-7/8" L x 4" W x 2" H (3313191.000)
Features	LCD Digital Display Screen Three-Button Capacitive Touch Operation. Digital calibration for consistent room comfort. Seven segment LCD numbers and letters improve viewing. Green LED indicator shows operating mode. Displays set temperature, actual temperature displayed on demand. Efficient three-speed fan. Auto fan will vary to maintain even room temperature. Memory retention — in case of power loss unit returns to previous set points. Includes thermostat (3316410.700) and control box (3313191.000)
Brand	Dometic
Power Requirement	12VDC
Installation Type	Ducted or Non-Ducted
Color	White
Compatible With	Dometic Air Conditioner Series: 540XXX, 4579XX, 4595XX, 640XXX, 640315, 640316, 640310, B57915, B59516, B59530, B79516
Replaces	3316230.000 & 3313189.000
Manufacturer SKU	9600024570
Model	3316230.700
LTL Freight	No
