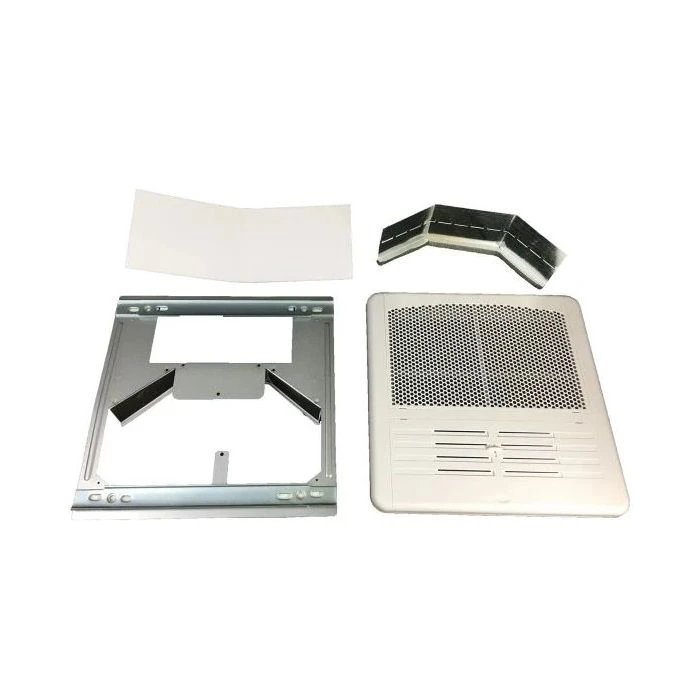

Dometic Quick Cool Ducted White Return Air Grille Ceiling Assembly

This return air grille is specifically designed for ducted applications and is to be used with Dometic’s Blizzard NXT, Penguin II, Brisk Air II and Commercial Grade units.

This is a ceiling assembly for Dometic Air Conditioners with ducted systems pre-installed in the RV.
A 14 ¼” x 14 ¼” square opening is required for installing this ceiling assembly.
A minimum of 2″ & maximum of 5-1/2″ distance between roof to ceiling of RV is required for installation.

Compatible with:57908, 59712, 57915, 59516, 59530, 520300, 520310, 520315, 520316, 600312, 600315

Dometic Item# 9610000926, DOMETIC AIR GRILLE AIR PW QUICKCOOL.

Item #	97941
Features	Control the AC Unit By A Wall Thermostat Adjustable Louvers To Control The Amount Of Air Coming Out Of The Grille
UPC	713814214975
Return Policy	30 Days (After Delivery)
Special Order Item	No
Net Weight	7.00
Warranty	Limited 2 Year Manufacturer Warranty
Included	(1) Air Distribution Box Kit (1) Screw Pack (1) Instructions Wall Thermostat and corresponding Control Board Kit are required to operate this ADB and are NOT included, they are sold separately
Installation Type	Ducted
Brand	Dometic
Color	Polar White
Compatible With	Dometic Blizzard NXT / Penguin II / Brisk Air II / Commercial Grade Series w/ Ducted Applications
Fits	14-1/4″ x 14-1/4″ (±1/8″) Square Opening in Roof
Replaces	3315930.010
Manufacturer SKU	9610000926
Model	3317404.000
LTL Freight	No
