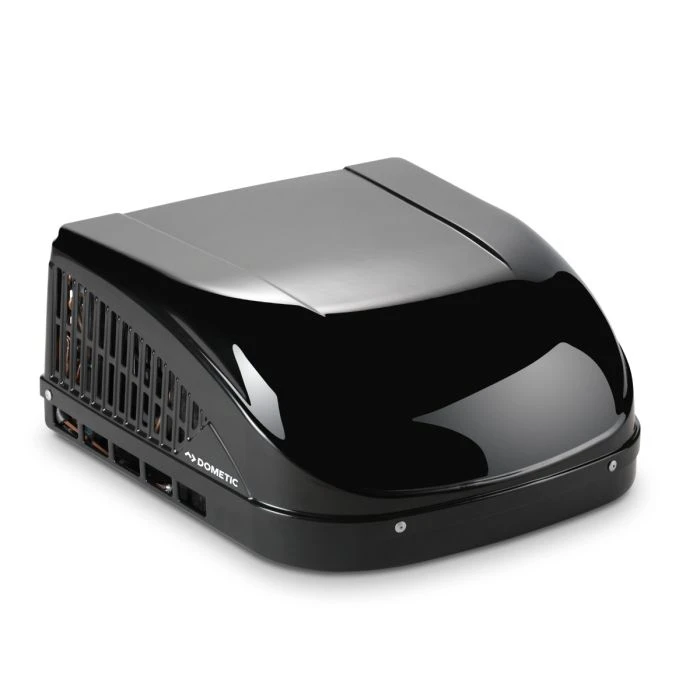

Dometic Brisk Air II 13.5K BTU Black Air Conditioner

The Brisk Air II B57915 Series offers a lightweight and compact design while still providing powerful cooling and airflow. The Expanded Polypropylene Foam (EPP Foam) reduces the overall weight of the unit and also improves cooling versus the use of heavy sheet metal that restricts airflow.

This unit can be set up as ducted or non-ducted, and can be a single zone application or can be part of a multi-zone application. It is “Cool Only” so if you are wanting a little extra heat to warm the zone around you a couple of degrees you can add heat strip to a non-ducted application with the use of the Universal ADB Ceiling Assembly.

MODEL # B57915.XX1J0 BREAKDOWN:

B – “Brisk II”
5 – “Standard”
7915 – “Cool Only, 13,500 BTU”
.
XX1J0 – “Black Shroud”

**If you are replacing your upper unit only and you have an older style Brisk Air non-ducted lower unit they will not match. You must also change your lower unit to the new Brisk Air II non-ducted lower 3314851.000**

Item #	97494
Power Requirement	120VAC
UPC	713814204761
Return Policy	30 Days (After Delivery)
Special Order Item	No
Net Weight	77 lbs.
Warranty	Limited 2 Year Manufacturer Warranty
Dimensions	Overall Product: 29-5/8" L x 27-5/8" W x 12-7/8" H
Included	(1) AC Unit Installation Instructions Ceiling Assembly, Control Board Kit, Thermostat, and Heat Strip Kit (compatibility may vary) are NOT included and are sold separately.
Features	Ampere Rating: 12 Amp Evaporator Flow Rate: 325 Cubic Feet Per Minute Refrigerant: R410A See "Description" Section for more information on the breakdown of this model
Installation Type	Ducted or Non-Ducted
Brand	Dometic
Function	Cool Only
BTU's	13,500 BTU
Profile	Standard
Color	Black
Fits	Standard 14-1/4″ x 14-1/4″ (±1/8″) square opening is required for installing this unit. This opening is part of the return air system of the unit and MUST be finished in accordance with NFPA 1192.
Replaces	Dometic 57915 and 457915 Series
Manufacturer SKU	9105304474
Model	B57915.XX1J0
Series	Brisk Air II Series
LTL Freight	Yes
