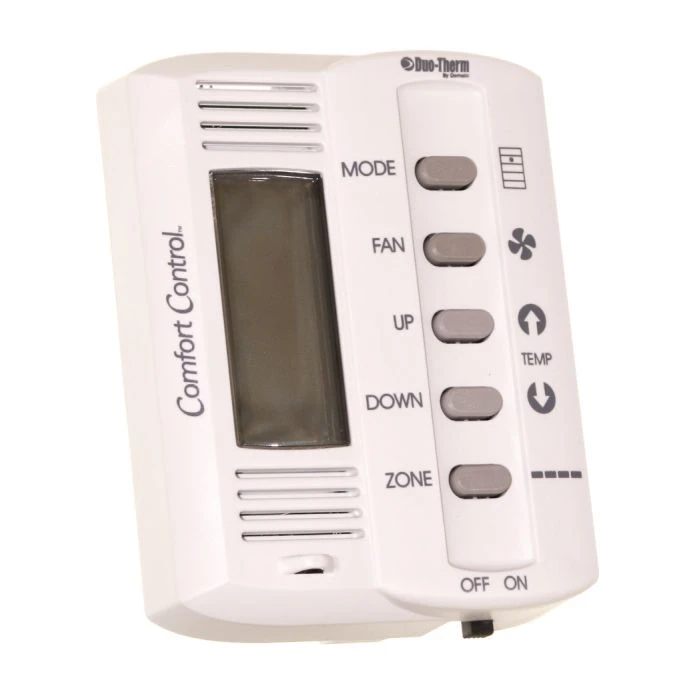

Dometic A/C Comfort Control Center 5 Button White

This electronic, digital system provides zoned climate control for as many as four areas within the coach – all from the digital control center. It is ideal for multi-room and slide out floor plan configurations.

TECH TIP: If error code “EE” appears when you install the new thermostat.
-When a new thermostat is plugged in they have to be reset so that they properly sync to the control board:
1. Turn off
2. Hold “mode” and “zone” buttons down same time code FF should appears
3. Release buttons.

Dometic Item# 9108554308, CENTER,COMFORT CONTROL WHT

Item #	82069
Brand	Dometic
Model	3109228.001
Color	Polar White
Features	LCD panel provides readouts in ºF or ºC. SureTouch control panel features user-friendly, intuitive controls. Fully digital system creates up to four different climate zones from one centralized location. Operate heat pump, AC, fan and other functions for each zone. AGS system monitors power supply/demand; and starts an on-board generator as needed.
Included	Instructions User's Guide Screws
Dimensions	4-3/8" L x 3-1/2" W
Net Weight	.30
Gross Weight	.55
Special Order Item	No
UPC	713814056650
LTL Freight	No
