Dinosaur P-246PLUS Replacement Refrigerator Board for Older Dometic’s

Features a circuit breaker on the board to protect 12V circuits from short circuit damage and a short circuit indicator that indicates shorts in wires to the main switch or interior light. Heavy-duty diode trips circuit breaker if the 12V DC is hooked up backwards. Fuses on the 120V AC circuits give you protection from short circuits in the heater wires and element.

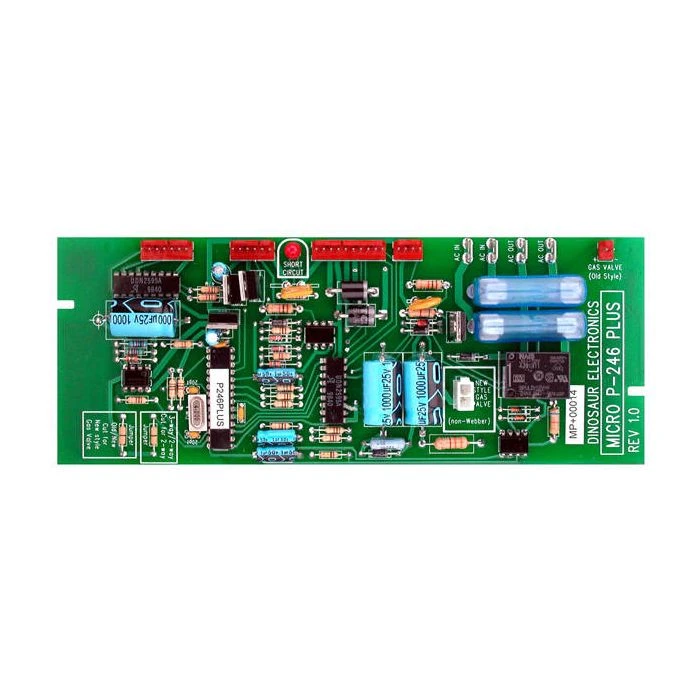

The Micro P-246 Plus board is a replacement control Board for Dometic® refrigerators. It has been designed to replace Dinosaur Electronics Micro P-24 2-way, Micro P-24 3-way, Micro
P-26 and all of the Dometic® model boards that they will replace. The board comes configured to work in 3-way refrigerators and a jumper can be cut to make it work in 2-way refrigerators.

Item #	51465
Brand	Dinosaur Electronics
Model	P-246PLUS
Fits	Use on Dometic® old and new style gas valves: RM 2602, RM 2603, RM 2802, RM2803, RM 3501, RM 3601, RM3604, RM3801, RM3804, RM4801, RM4804, RM4808.002, RM4804.004, RM4804.005, RM4804.006, RM7030 Prod. #921890201 and RM7030 Prod. #921890301
Features	3-way operation. AC / DC / Gas operation. Fuse and circuit breaker protected.
Warranty	3 Year
Special Order Item	No
UPC	816689022062
LTL Freight	No
