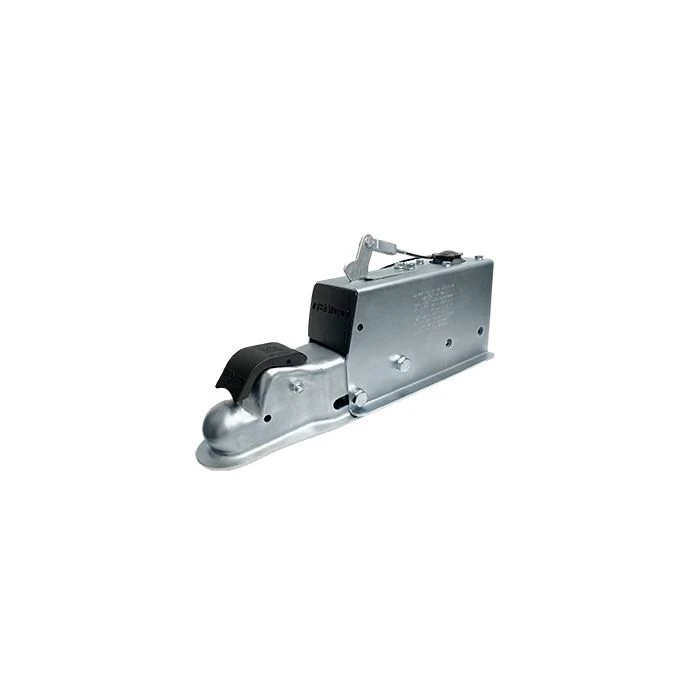

Demco 7000lb Trailer Drum Brake Actuator

Most commonly used on boat trailers, this drum brake actuator makes transitioning to and from a marine environment much easier.

With a 7000 lb. G.V.W.R. maximum rating, 700 lb. tongue load (limited to coupler rating), this actuator is great for smaller trailer applications that meet these requirements. It mounts on a 3″ tongue with two 1/2″ x 4-1/2″ grade 5 bolts.

This actuator is the replacement for Demco’s 6000 lb. actuator manufacturer # 8605001. This new model # 8705001 has a higher capacity, it has 3 mounting holes instead of 2 mounting holes, and the handle on the coupler is now a composite handle.

Item #	98001
Brand	Demco
Series	DA70
Model	8705001
Replaces	8605001, DA66B
Features	7000 lb. G.V.W.R. Maximum Rating 700 lb. Tongue Load, limited to coupler rating Zinc Plated EZ Latch Coupler Design Handle Material: Composite Lock-Out Lever: NO
Included	(1) Brake Actuator Mounting bolts are NOT included, the type and size will depend on your application
Dimensions	Mounts on a 3” tongue with two 1/2” x 4-1/2” grade 5 bolts (not included) in most applications
Warranty	Limited 90 Day Warranty
Special Order Item	No
Return Policy	30 Days (After Delivery)
LTL Freight	No
