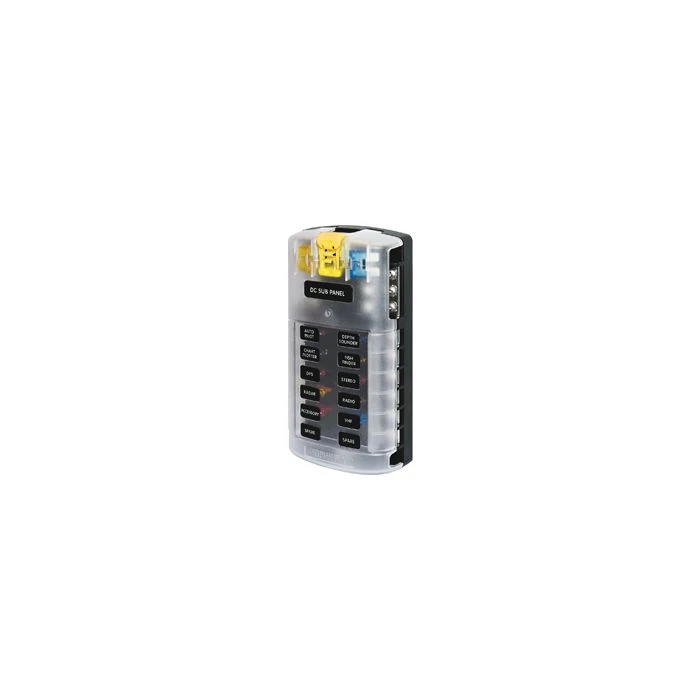

Blue Sea Systems 12 Circuit ATO/ATC Blade Fuse Block

Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses.

The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker.

Circuits: 12
Maximum Amperage: 100A per block & 30A per circuit
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Negative Bus: #10-32 Stud
Screw Terminal Type: #8-32 Screws with captive star lock washer

Item #	84337
Brand	Blue Sea Systems
Model	5026-BSS
Replaces	5026
Amperage	100 Amp
Features	Can be used for 24-hour circuits Fuse blocks with covers include 20 write-on circuit labels Tin-plated copper buses and fuse clips Accepts ring or spade type terminals Accepts ATO® and ATC® fast acting blade fuses Fuses sold separately
Dimensions	See Image # 2
Special Order Item	No
UPC	632085050269
